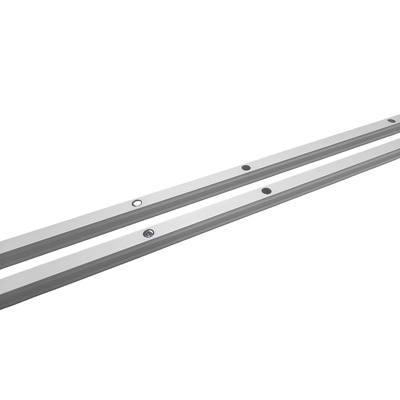

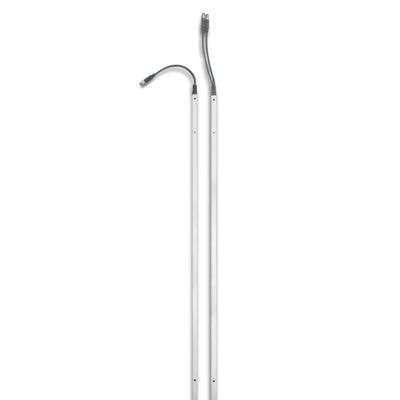

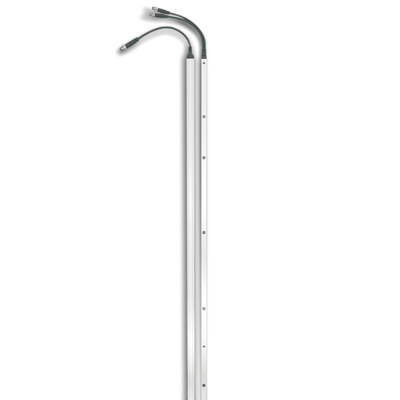

Cold Storage Roll-Up Door Infrared Light Curtain Instant Frost-Resistant Response IP67 Sealed Aluminum Frame

Nama merek:	JUTAI
Nomor Model:	CG15-8L
MOQ:	Support 1-10 pcs for testing
harga:	Bisa dinegosiasikan
Rincian kemasan:	1 set 1 cartoon. 8 set 1 big cartoon
Ketentuan Pembayaran:	T/T, Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Place of Origin:

Shenzhen China

Sertifikasi:

LED Status:

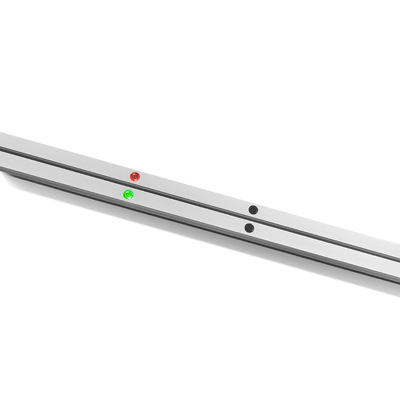

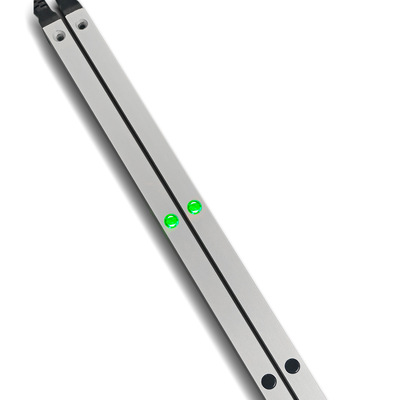

Transmitter: Green light always on (normal) ；Receiver: Red light (object obstruction), green light (unobstructed, power supply), red light flashing (first power on)

Working Voltage:

12 - 30VADC

Output:

Transmitter: - ；Receiver: NO, NC, COM

Working Current:

64mA@DC12V / 44mA@DC24V / 34mA@DC30V

Output Load:

Maximum switching current: 1A, maximum switching voltage: 125V@AC, 60V@DC

Angle:

Transmitter: ±15° ；Receiver: ±65°

Cable Length:

Transmitter Size 12m Receiver Size 4 m

Number of Optical Eyes:

Light Eye Distance:

175 mm

Wavelength:

950nm

Detection Distance:

12m (Indoor/Outdoor)

Response Speed:

23 ms

Closest Installation Distance:

50 cm

Cable Specifications:

AWG26

Shell Material:

Natural alumina

Protection Grade:

Operation Temperature:

-40°C ~ +70°C

Supply Ability:

1000 set per month

Menyoroti:

cold storage roll-up door

infrared light curtain frost-resistant

IP67 sealed aluminum frame

Deskripsi Produk

Cold Storage Roll-Up Door Infrared Light Curtain Instant Frost-Resistant Response IP67 Sealed Aluminum Frame ❄️ Defying the Deep Freeze, Protecting What Matters In the icy heart of cold storage warehouses, where roll-up doors slice through sub-zero air and frost clings to every surface, ordinary sensors falter. Our Infrared Light Curtain thrives where others freeze. Built specifically for punishing freezer environments, its instant frost-resistant response sees through

Tag:

Tirai Cahaya Multibeam

Tirai Cahaya Pengaman

Tirai cahaya yang kosong

rincian produk

Rumah > Produk >

Tirai cahaya inframerah

Cold Storage Roll-Up Door Infrared Light Curtain Instant Frost-Resistant Response IP67 Sealed Aluminum Frame

Semua Kategori

Cold Storage Roll-Up Door Infrared Light Curtain Instant Frost-Resistant Response IP67 Sealed Aluminum Frame

Nama merek:	JUTAI
Nomor Model:	CG15-8L
MOQ:	Support 1-10 pcs for testing
harga:	Bisa dinegosiasikan
Rincian kemasan:	1 set 1 cartoon. 8 set 1 big cartoon
Ketentuan Pembayaran:	T/T, Western Union

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Place of Origin:

Shenzhen China

Nama merek:

JUTAI

Sertifikasi:

Model Number:

CG15-8L

LED Status:

Transmitter: Green light always on (normal) ；Receiver: Red light (object obstruction), green light (unobstructed, power supply), red light flashing (first power on)

Working Voltage:

12 - 30VADC

Output:

Transmitter: - ；Receiver: NO, NC, COM

Working Current:

64mA@DC12V / 44mA@DC24V / 34mA@DC30V

Output Load:

Maximum switching current: 1A, maximum switching voltage: 125V@AC, 60V@DC

Angle:

Transmitter: ±15° ；Receiver: ±65°

Cable Length:

Transmitter Size 12m Receiver Size 4 m

Number of Optical Eyes:

Light Eye Distance:

175 mm

Wavelength:

950nm

Detection Distance:

12m (Indoor/Outdoor)

Response Speed:

23 ms

Closest Installation Distance:

50 cm

Cable Specifications:

AWG26

Shell Material:

Natural alumina

Protection Grade:

IP67

Operation Temperature:

-40°C ~ +70°C

Minimum Order Quantity:

Support 1-10 pcs for testing

Harga:

Bisa dinegosiasikan

Packaging Details:

1 set 1 cartoon. 8 set 1 big cartoon

Delivery Time:

5-8 working day

Payment Terms:

T/T, Western Union

Supply Ability:

1000 set per month

Menyoroti:

cold storage roll-up door

infrared light curtain frost-resistant

IP67 sealed aluminum frame

Deskripsi Produk
